Item: 16643

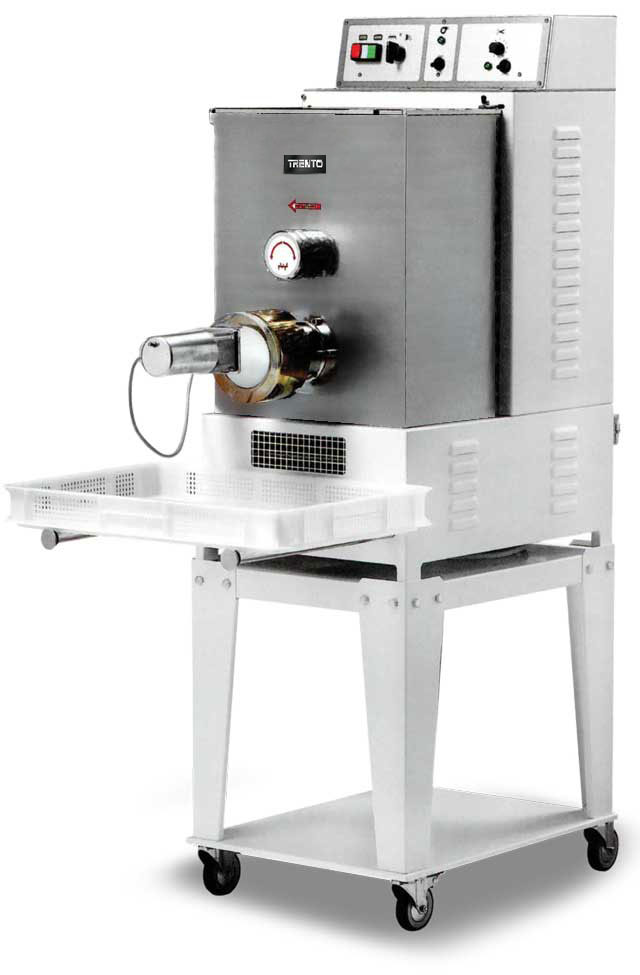

Model: PM-IT-0025
Item: 16643
Model: PM-IT-0025
Parts in contact with the product to be processed in stainless steel or material suitable for contact with food
Available single-phase or three-phase
Extrusion sleeve with cooling
Electronic knife for automatic cutting of short pasta, mounted on the machine as standard
Pasta drying fan as standard
Sieve support bars as standard
Working organs with the possibility of rotating in both directions
Easy disassembly of working parts with free access to the machine for complete cleaning
Possibility of producing different pasta shapes just by changing the die
Available with white painted bench body
Accessories supplied: cooled sleeve, liquid measuring jug, ring nut fixing key, paste collecting sieve, trolley, cooling system
Accessories on request: dies of various sizes,
PM-IT-0025 (16643) pasta dies can be purchased separately. Click here for more detail.
Create your own signature pasta with our pasta machine. These pasta extruders are ideal for restaurant and supermarket applications. Just simply load all ingredients into the hopper until the dough is extruded through the nozzle producing perfectly shaped pasta at any given time.
Important:
Cooling System – The back of the unit with the cooling system feature is equipped with water supply inlet/outlet. Connect the inlet with COLD water connection. Please note that one side to be used as input and other as a drain (Certified Plumber is required). The inlet/outlets are identical, and it does not matter what is used as the supply or drain, as the internal supply is just a loop for the head and die to be kept cold.
Cutting assembly included. Dies are sold separately.
Feature | Specification |
|---|---|
Dough Capacity | 33 lb / 15 kg |
Max Hourly Production | 62 lbs/hr / 28 kg/hr |
Electrical | 220V/60Hz/1 |
Power | 1.5 HP / 1.12 kW |
Net Dimensions (WDH) | 18.5" x 36" x 36" / 470 x 915 x 915 mm |
Net Weight | 297.6 lb / 135 kg |
