Item: 49118
Model: PM-IT-0012
Item: 49118
Model: PM-IT-0012
All components that come into contact with food are made of stainless steel or food-grade bronze.
All moving parts are installed on ball bearings with long-life seals or support with a grease gun.
Single-motor-driven, belt drive with maintenance-free reduction gear. The mixer is driven by a sprocket
Equipped with height-adjustable feet and plastic caps.
Operating components can rotate in both directions.
The operating parts are easy to disassemble to allow access for cleaning the machine.
Allows you to make various pasta shapes by simply changing the die.

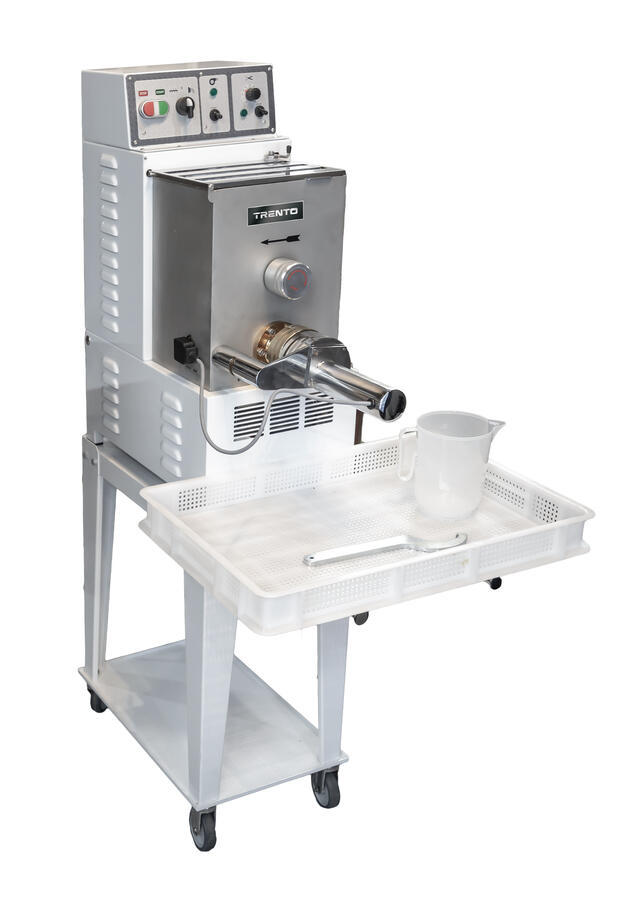

Accessories supplied: liquid measuring jug, ring nut key, pasta tray, cutting assembly, trolley.
Click HERE for pasta guide

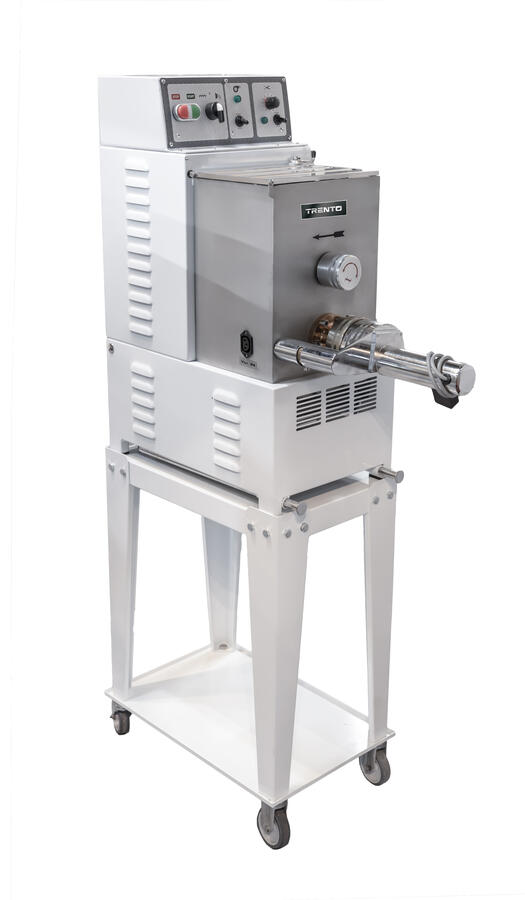

Create your own signature pasta with our pasta machine. These pasta extruders are ideal for restaurant and supermarket applications. Simply load all ingredients into the hopper until the dough is extruded through the nozzle, producing perfectly shaped pasta at any given time. The cooling system is designed for all-day long operation.
Important:
Cooling System – The back of the unit with the cooling system feature is equipped with water supply inlet/outlet. Connect the inlet with COLD water connection. Please note that one side to be used as input and other as a drain (Certified Plumber is required). The inlet/outlets are identical, and it does not matter what is used as the supply or drain, as the internal supply is just a loop for the head and die to be kept cold.
Cutting assembly and stand included. Dies are sold separately.
Feature | Specification |
|---|---|
Electrical | 110V/ 60Hz/ 1Ph |
Power | 1 HP / 0.75 kW |
Material | Stainless steel body |
Dough Capacity | 5 kg / 11 lb |
Output Per Hour | 12 kg / 26.5 lb |
Pasta Sheet (Width) | 180 mm / 7.1" |
Trolley (Height) - Optional | 660 mm / 26" |
Machine Dimensions (WDH) | 320 x 750 x 725 mm / 12.6" x 29.5" x 28.5" |
Weight | 68 kg / 150 lb |
