Item: 49126
Model: DUPLA-50-USA
Item: 49126
Model: DUPLA-50-USA
Water Hardness: 2 - 8 °F
Rinsing Temperature (Set): 185 °F (85 °C)
Tank Capacity: 28.5 Qt. (27 L)
Tank Heating Element: 2940 W
Tank Temperature (Set): 160 °F (71 °C)
Booster Capacity: 6 Qt. (5.67 L)
Booster Heating Element: 6530 W
Inlet Water Pressure: 25 - 90 PSI
Power: 7090 W
30.1 A
Electrical: 220-240V / 60 Hz / 1 Ph
Water Consumption / Cycle (rinse pressure 15 PSI): 2.96 Qt. (2.8 L)
Washing Cycles (sec): 1 (120) | 2 (180
Water Supply 131 °F Racks /H (*)(1): 30 | 20
Water Supply 50 °F Racks /H (*)(1): 21 | 20
Pump Power: 560 W (359 Qt./339 L per minute***)
Drain Pump: 43 W hMAX 31.5” (800 mm) (43.12 Qt. / 40.8 L***)
Noise: 59.3 dB(A)

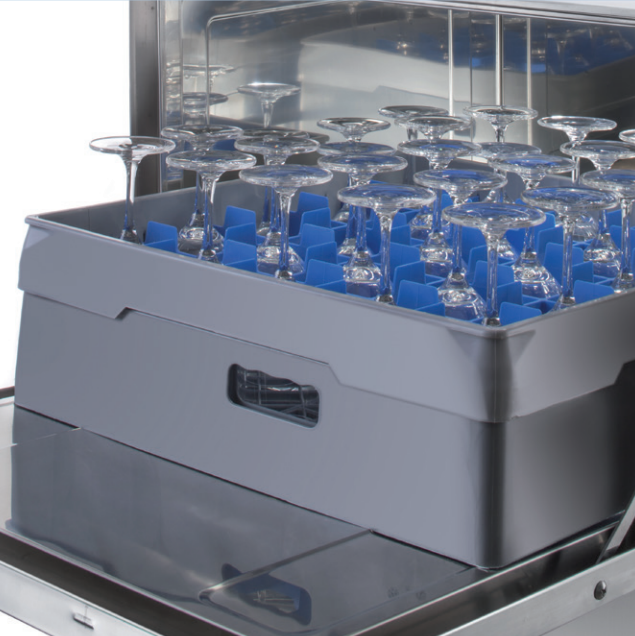

Rack Equipment: (1) Plastic Plates Basket | (1) Large Mesh Glass Basket | (1) Cutlery Basket
Rack Dimensions: 20” x 20” (508 x 508 mm)
Crockery Dimensions Plates: 12.81” (325 mm) dia.
Dishes Max Height: 12.18” (309 mm)
Net Weight: 150 lb. (68 kg.)
Net Dimensions (WDH): 23.43” x 24” x 33.31” (595 x 610 x 846 mm)
Gross Weight: 169 lb. (76.5 kg.)
Gross Dimensions (WDH): 26” x 26” x 40” (660 x 660 x 1010 mm)
(*) Standard Thermostop
(1) In case of cold water supply and/or continuous washing, the rinse-water heating process might take more time than usual, until the proper rinse temperature is reached. For this reason, the wash-cycle total timing might result longer than set.
(***) Maximum Flow Rate
