Item: 49123

Model: MX-IT-0100-M

164 qt Heavy-duty Spiral Dough Mixer, 2 Speeds – 2.4kW – 4.5 kW, 208 V, 3 Phase

REQUEST A QUOTE arrow_right
164 qt Heavy-duty Spiral Dough Mixer, 2 Speeds – 2.4kW – 4.5 kW, 208 V, 3 Phase
  • UPC Code

    690207491239

  • Warranty

    1 Year Parts and Labor

  • Certification

    cETLus, ETL Sanitation

  • Country of Origin

    ITALY

  • Gross Weight

    992 lbs.

  • Gross Dimensions

    48.4" x 29.1" x 49.2"

  • Type of Plug

    NEMA 5-15 P

Highlights
Full Description
Heavy-duty spiral mixers make preparing of dough possible with ease and efficiency.

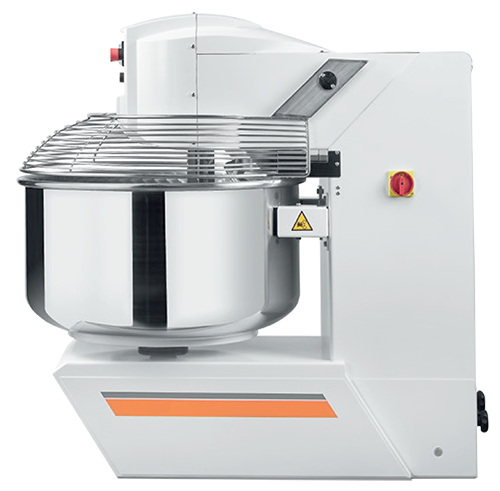

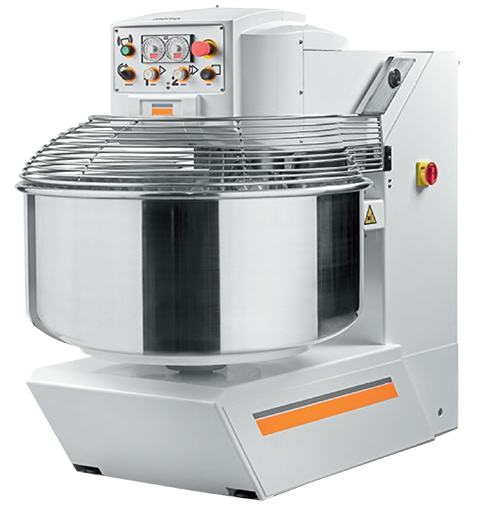

This heavy-duty spiral machine with fixed stainless steel basins includes a rear basin guard. It is equipped with two kneading speeds, two timers to program the working cycle, two fixed wheels, and adjustable feet for easy positioning.

FEATURES:

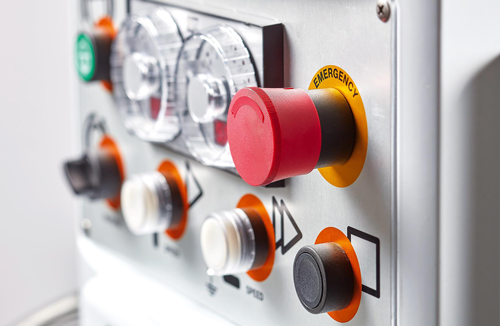

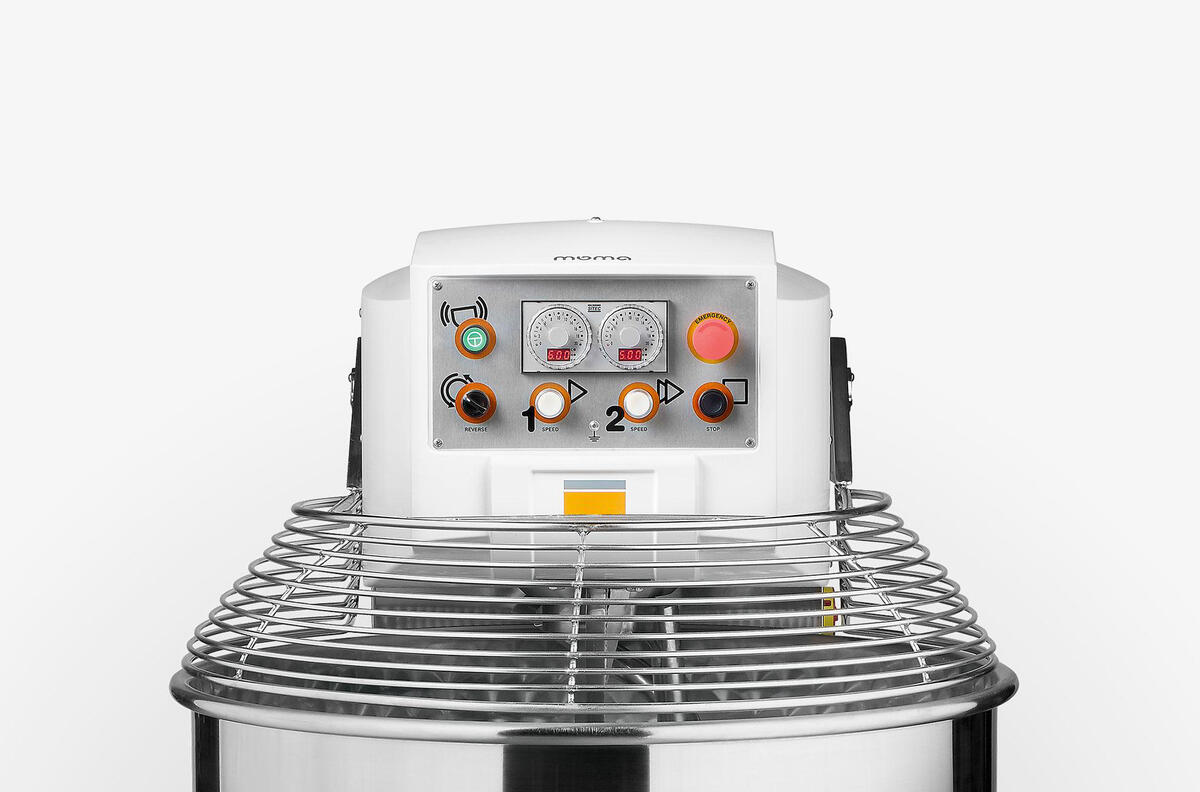

Intuitive Interface
You can access all functions with a few simple actions: two work speeds, two times, and an automatic cycle.

Bowl & Spiral
Both are made from high-resistance stainless steel. The design, dimensions, and sizing have all been carefully devised to ensure a peerless finished product.

• Stunning Dough
Designed to help you create a dough with perfect, handmade consistency. The Plus version has a reinforced spiral drive mechanism specially designed for dryer dough mixes.

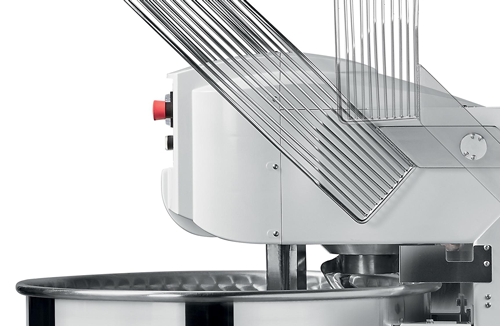

• Highly Safe
The protective grill in stainless steel is ergonomically designed and completely safe. When opened the machine automatically stops working.

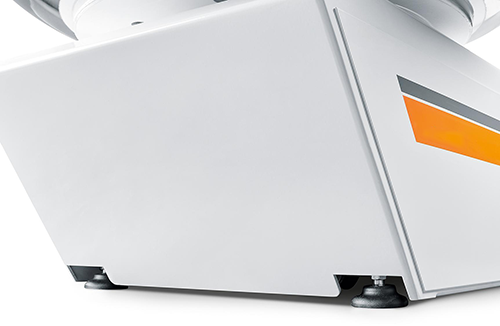

• Solid Stability
The feet give the machine great stability, while the wheels mean that the machine can be moved easily to clean the workspace.

• User-friendly At All Times
A special button means you can respond to emergencies quickly, following the regulations out there.
Warranty Description
Technical Description

Feature

Specification

Bowl Capacity

164 QT

Max Dry Flour Capacity

138 lb. / 63 kg

Max Dough Capacity

220 lb. / 100 kg

Timer

2

RPM

2

Wattage

Spiral: 2,400 W / 4,400 W | Bowl: 5,600 W

Power

Spiral: 2,400 - 4,500 W | Bowl: 560 W

Amps

Spiral: 8.3 A - 15.26 A | Bowl: 19.4 A

Electrical

208V / 60Hz / 3Ph

Bowl Dimensions (diaH)

27.6" x 16.1” (701 x 361 mm)

Net Weight

992.1 lb. / 450 kg

Net Dimensions (DWH)

29.1” x 48” x 49.2” (740 x 1220 x 1250 mm)
