Item: 47417

Model: MX-IT-0020-FT

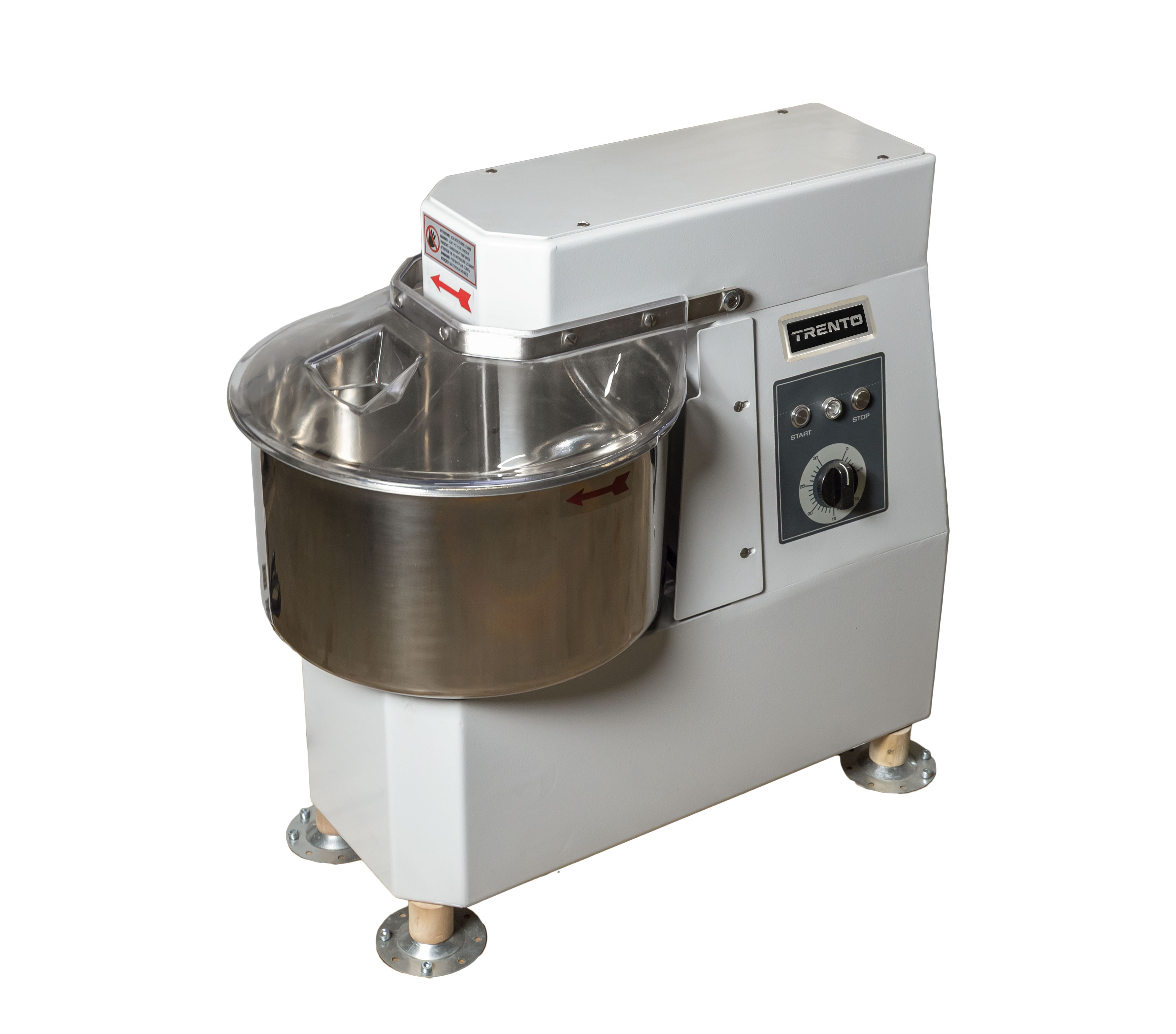

22 qt Spiral Mixer with Fixed Bowl and Timer – 120V, 750W

REQUEST A QUOTE

Specsheet Instruction Manual Parts Breakdown

22 qt Spiral Mixer with Fixed Bowl and Timer – 120V, 750W

22 qt Spiral Mixer with Fixed Bowl and Timer – 120V, 750W

22 qt Spiral Mixer with Fixed Bowl and Timer – 120V, 750W

UPC Code

690207474171
Warranty

1 Year Parts and Labor
Certification

cETLus, ETL Sanitation
Country of Origin

Italy
Gross Weight

179 lbs.
Gross Dimensions

22.8" x 32.7" x 39.4"
Type of Plug

NEMA 5-15P

Highlights

FEATURES:
• Made from large thickness C40 steel
• Scratch resistant powder coating
• The bowl is made with reinforced edge and AISI 304 stainless steel shaft
• Forged spiral tool
• Lid with opening to add ingredients during operation
• High efficiency ventilated motor with oil-bath gear box
• Thermal overload protection circuit breaker

Technical Description

Feature	Specification
Bowl Capacity	22 QT
Max Dry Flour Capacity	23 lb. / 10.5 kg
Max Dough Capacity	37.5 lb. / 17 kg
RPM (Bowl/Spiral)	10 / 85
Power	750 W / 1 hp
Electrical	120V / 60Hz / 1Ph
Bowl Dimensions	14.2” x 8.3” (360 x 210 mm)
Net Weight	153.7 lb. / 69.7 kg
Net Dimensions (WDH)	15.4” x 26.8” x 24.6” (391 x 680 x 624 mm) Open Lid Height: 37.4” (950 mm)
